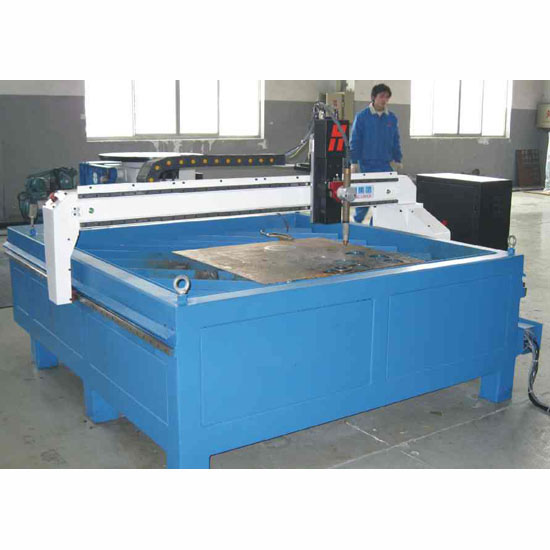

It’s a kind of high speed and precision cutting machine, which adopts integrated modular structure. Especially, it’s suitable for cutting of medium and thin plate. It has convenient and fast installation, small inertia, and stable running. In order to protect the environment, it can be designed as smog exhauster type.
Main technical parameter
Cutting width(mm)
|
1000-3000
|
Cutting length(mm)
|
1000-14000
|
Cutting thickness(mm)
|
flame:6-100,can be increased as per customer's requirement and max is 350.
|
Idle running speed(mm)
|
Plasma:Recommend as per customer's requirement.
|
Cutting speed(mm)
|
Max 1200, (stepless speed adjusting)
|
Positioning precision(mm)
|
Max 1200, ( setting as per the cutting material technology )
|
Repeating precision(mm)
|
±0.5
|
Cutting quality and size error
|
±0.3
|
Machine precision
|
Conform to the requirements of JB/T140045.3-1999 and JB/T140045. 4-1999
|
power voltage
|
Conform to the requirements of JB/T5102-1999 1P AC220V,50HZ
|
Machine dimension(mm)
|
L:valid L+ 1000, W:valid W+ 500, H:about 1800
|
|
